GearUP AVP-63 Automatic Voltage Protector in Bangladesh

Warranty: 1 year (Burn and physical damage not applicable)

Key Functions

1. Protection Features
2. Over-voltage Protection: Cuts off power if voltage exceeds the set threshold (P-3).
3. Under-voltage Protection: Disconnects load if voltage drops below the set limit (P-5).
4. Over-current Protection: Trips when current surpasses the configured max (P-9) after a delay (P-10).
5. Automatic Recovery: Restores power after fault conditions (adjustable via P-15).
6. Fast Power-Down: Emergency cutoff (enabled via P-14).
7. Monitoring & Display
8. Real-time voltage display (AC/DC).
9. Real-time current display (AC only; DC mode shows voltage only).
10. Indicators for faults (>V, <V, >A) and normal operation (POWER).
11. Programmable Settings
12. Adjustable thresholds for voltage/current, recovery times, and calibration (P-1 to P-17).
13. Password protection (P-17) to prevent unauthorized changes.

2. Technical Specifications

CategoryDetails
Power Supply	AC: 320V / DC: 80–300V
Frequency	50/60Hz (AC only)
Voltage Range	AC: 80–300V (setting), 80–210V (operating) / DC: 130–300V (setting), 80–210V (operating)
Max Current	40A/63A (configurable)
Accuracy	Voltage: <1%
Response Time	Overvoltage: 0.5s (no delay) / Adjustable trip delays (P-7, P-10)
Environmental	-25°C to +50°C, ≤2000m altitude, ≤50% humidity (at 40°C)
Physical	512 × 960mm, 15kg

3. Setup & Operation Guide

A. Initial Configuration

1. Power Connection:

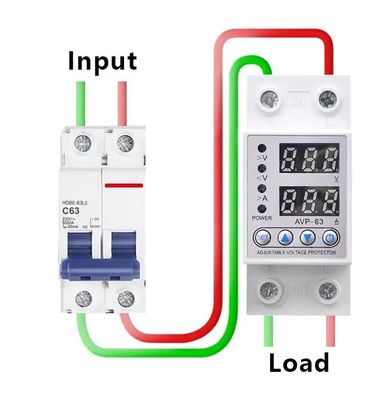

2. Wire terminals (N-L) to AC/DC source within rated limits.
3. Menu Navigation:
4. Use front-panel buttons to adjust parameters (P-1 to P-17).

B. Critical Settings

ParameterPurposeDefaultRange
P-3/P-5	Over/under-voltage thresholds	300V/80V	AC: 80–300V / DC: 130–300V
P-9	Max current limit	63A	14–63A
P-15	Auto-recovery after fault	ON	ON/OFF
P-17	Password lock	000	000–999

Note: Refer to the device’s manual for detailed wiring diagrams and safety compliance.
