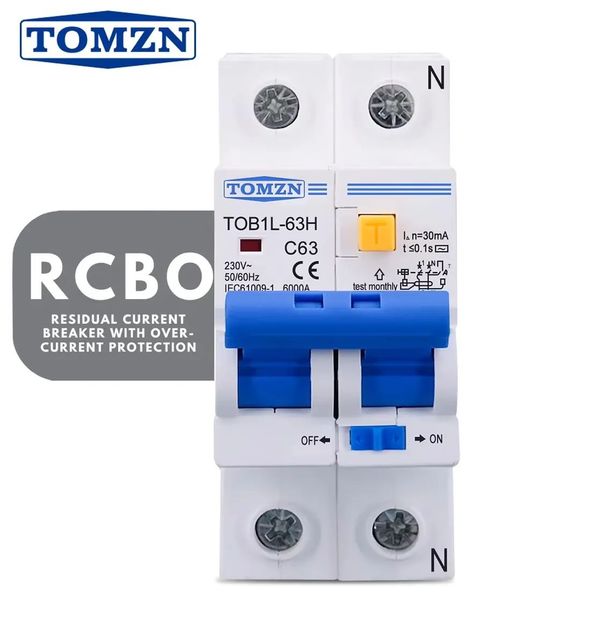

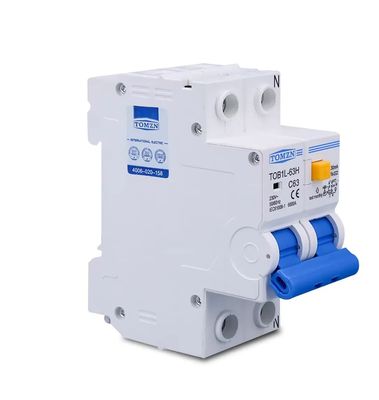

TOMZN RCBO TOB1L-63H 2P 63A 230V AC 50Hz/60Hz Residual Current Circuit breaker with over current and Leakage protection RCBO .

TOMZN RCBO Residual Current Circuit breaker with over current and Leakage protection in Bangladesh🔧 Key Specifications:SpecificationDescriptionModelTOB1L-63HBrandTOMZNPoles2P (Phase + Neutral)Rated Current (In)63ARated Voltage (Ue)230V ACFrequency50Hz / 60HzResidual Operating Current30mA (typical, adjustable in some models)Breaking Capacity6kATripping CharacteristicType C (standard usage, handles moderate inrush currents)ProtectionOvercurrent, Short Circuit, Earth LeakageMountingDIN Rail 35mm (standard)Cut-offCuts both L (Live) and N (Neutral) during fault conditionApplicationResidential, commercial, and light industrial usage⚙️ Features:✅ RCBO (Residual Current Breaker with Over-current): Combines the functionality of MCB + RCD in one compact unit.✅ Double-pole Cut-off (L+N): Enhances safety by disconnecting both lines during faults.✅ Quick Trip Response: Responds rapidly to ground fault or overload.✅ Compact DIN rail design: Easy installation inside distribution boards.✅ Fire and shock protection: Provides added protection against electrical fires and electrocution.✅ High sensitivity: Can detect leakage as low as 30mA.🏠 Use Case Scenarios:Household electrical circuit protectionAir conditioner or geyser line protectionSolar inverter AC output protectionSmall office distribution boardShops and light commercial spaces⚠️ Important Note:Always install RCBOs with correct wiring and grounding.Make sure the selected current rating suits your load.It is recommended to install by a qualified electrician.

•
•
•

Details:

• Warranty
  6 month warranty

TOMZN RCBO Residual Current Circuit breaker with over current and Leakage protection in Bangladesh

🔧 Key Specifications:

SpecificationDescription
Model	TOB1L-63H
Brand	TOMZN
Poles	2P (Phase + Neutral)
Rated Current (In)	63A
Rated Voltage (Ue)	230V AC
Frequency	50Hz / 60Hz
Residual Operating Current	30mA (typical, adjustable in some models)
Breaking Capacity	6kA
Tripping Characteristic	Type C (standard usage, handles moderate inrush currents)

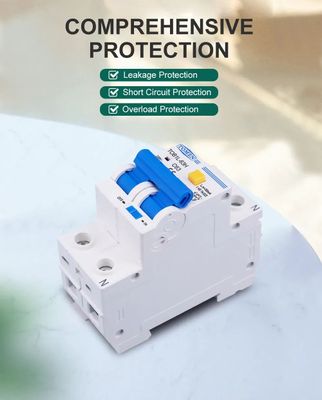

Protection	Overcurrent, Short Circuit, Earth Leakage
Mounting	DIN Rail 35mm (standard)
Cut-off	Cuts both L (Live) and N (Neutral) during fault condition
Application	Residential, commercial, and light industrial usage

⚙️ Features:

1. ✅ RCBO (Residual Current Breaker with Over-current): Combines the functionality of MCB + RCD in one compact unit.
2. ✅ Double-pole Cut-off (L+N): Enhances safety by disconnecting both lines during faults.
3. ✅ Quick Trip Response: Responds rapidly to ground fault or overload.
4. ✅ Compact DIN rail design: Easy installation inside distribution boards.
5. ✅ Fire and shock protection: Provides added protection against electrical fires and electrocution.
6. ✅ High sensitivity: Can detect leakage as low as 30mA.

🏠 Use Case Scenarios:

1. Household electrical circuit protection
2. Air conditioner or geyser line protection
3. Solar inverter AC output protection
4. Small office distribution board
5. Shops and light commercial spaces

⚠️ Important Note:

1. Always install RCBOs with correct wiring and grounding.
2. Make sure the selected current rating suits your load.
3. It is recommended to install by a qualified electrician.

TOMZN RCBO TOB1L-63H 2P 63A 230V AC 50Hz/60Hz Residual Current Circuit breaker with over current and Leakage protection RCBO .
